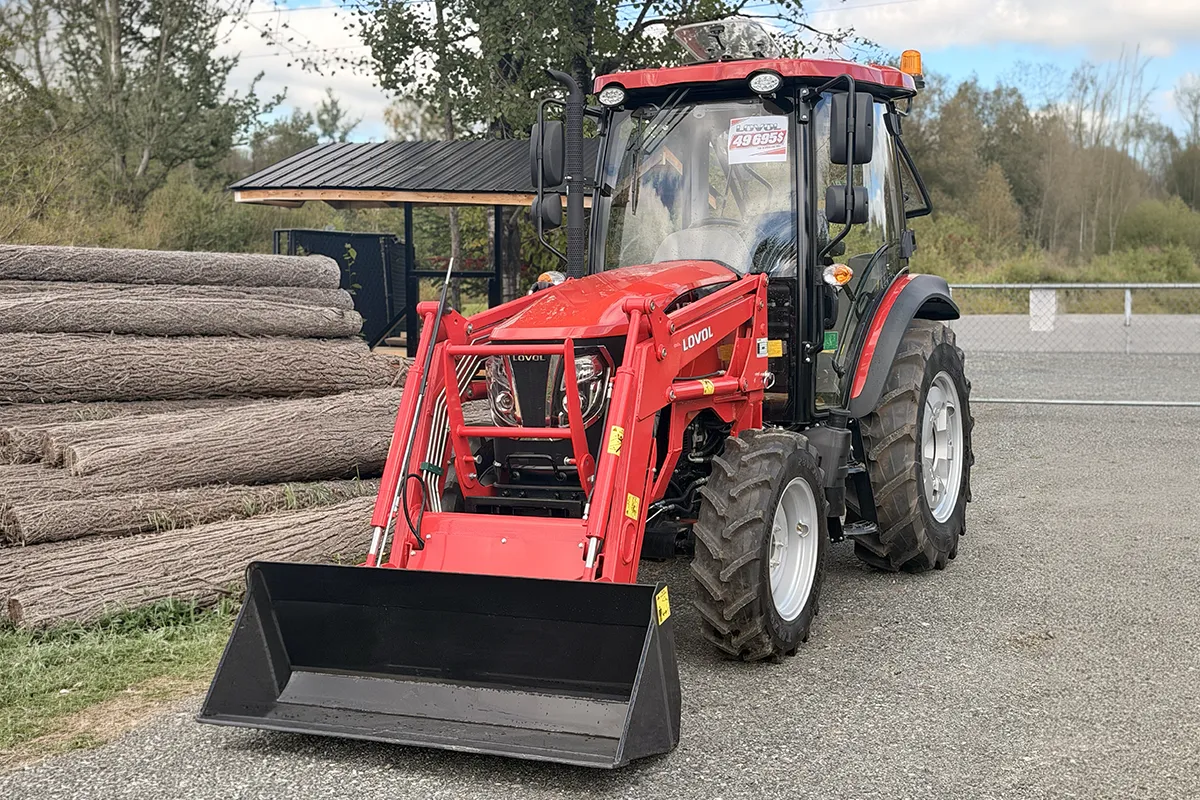

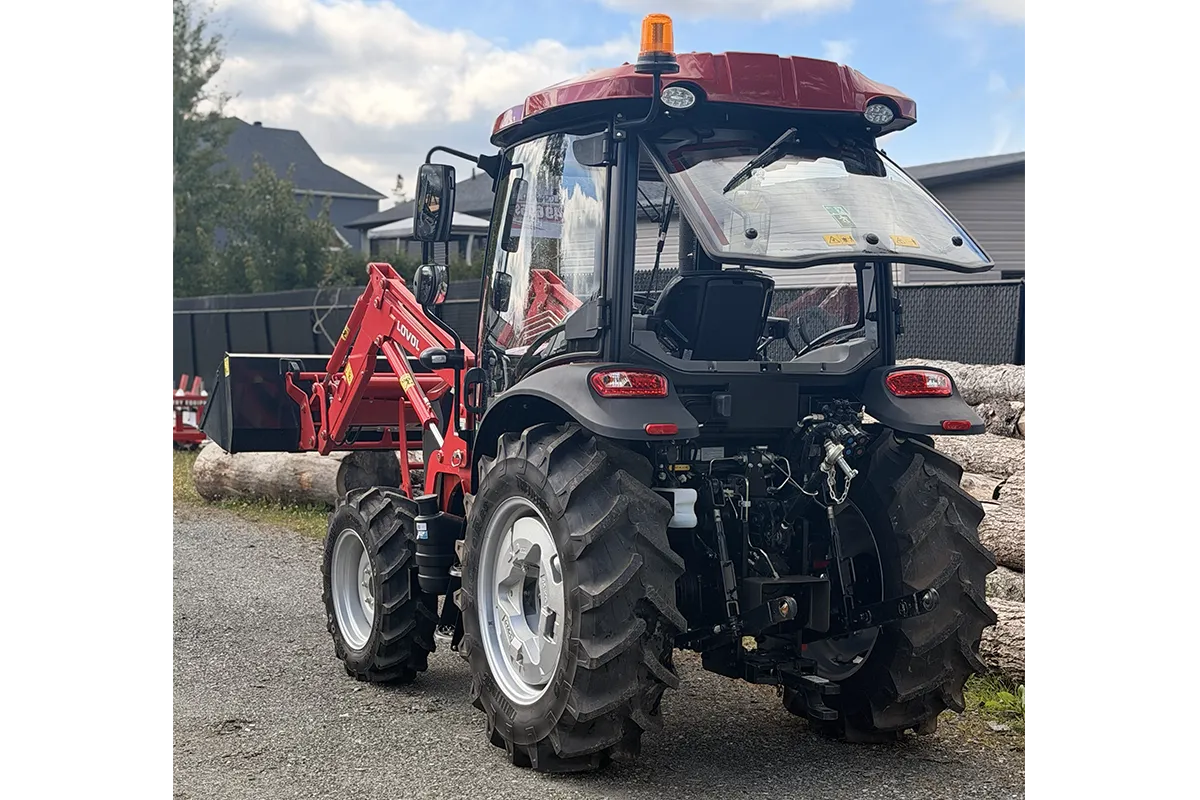

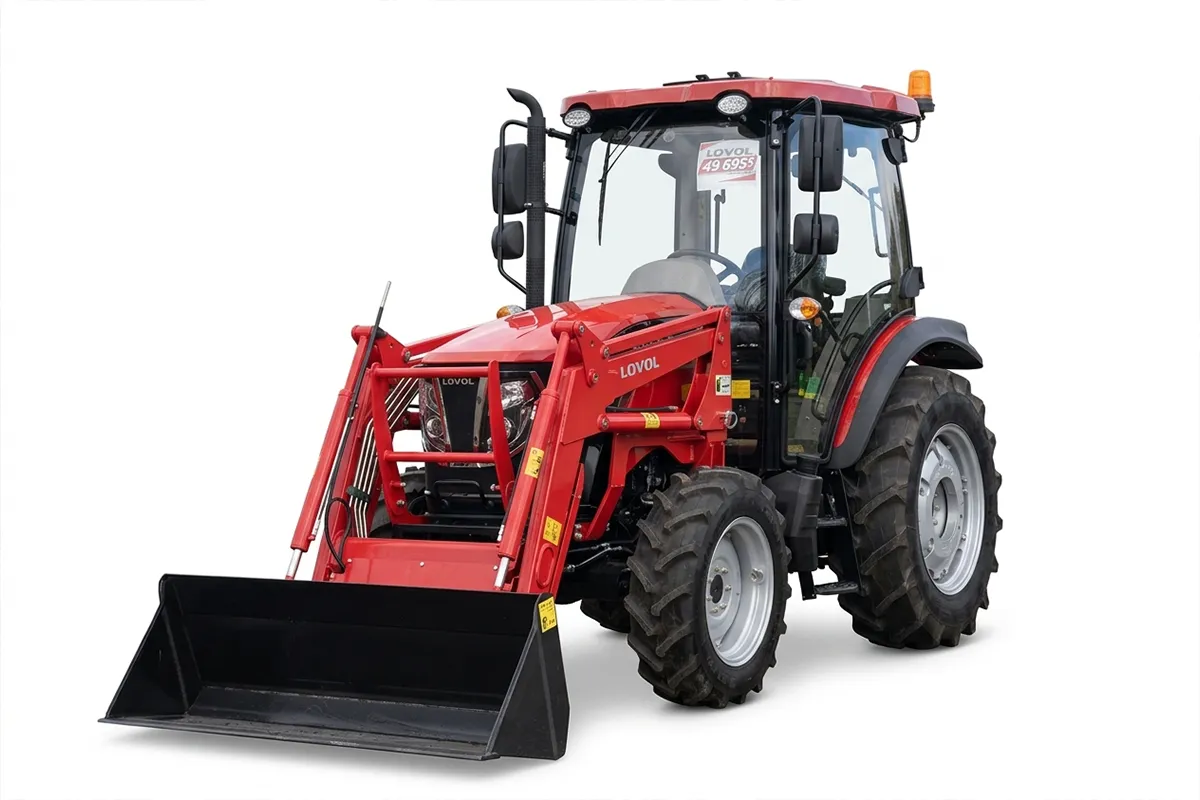

LOVOL M504

Highlights

• Versatile Use: Suitable for agriculture, livestock, material handling, and site management.

• Powerful & Efficient Engine: Doosan Stage V diesel engine offering high torque and low operating costs.

• Proven Robustness: Solid chassis built to withstand harsh working conditions.

• All-Weather Comfort: Spacious cab with heating and air conditioning to work comfortably year-round.

• Excellent Value: Professional-grade equipment with highly manageable maintenance costs.

Detailed Description

1. Powerful and Efficient Stage V Engine

The Lovol M504 features a 3-cylinder Doosan DM01 direct-injection diesel engine compliant with Stage V emission standards. Delivering 50 HP, it stands out with its high torque at low RPMs, allowing for efficient operation and optimized fuel consumption during intensive work.

2. Transmission and 4-Wheel Drive (4WD)

Equipped with a 12×12 synchronized gearbox and a hydraulically assisted clutch, this model offers great driving flexibility. Its 4WD traction guarantees superior performance and grip, from paved roads to muddy fields.

3. Hydraulics and Power Take-Off (PTO)

The hydraulic linkage offers a 1,300 kg lift capacity, supported by 2 double-acting hydraulic valves. The versatile Power Take-Off (PTO) running at 540 / 1000 RPM can power a wide range of tools (tedders, tillers, mowers, etc.).

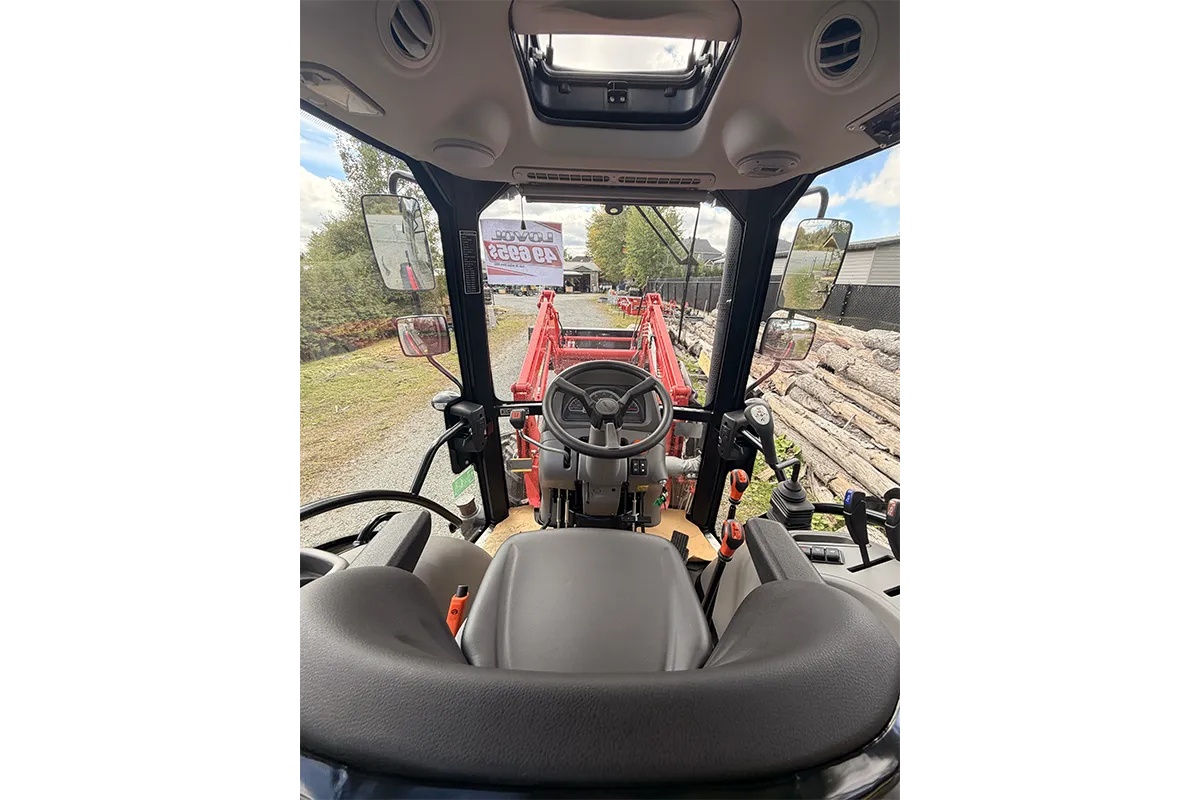

4. Comfortable and Ergonomic Cab

Mounted on a stable chassis with wide pneumatic tires (280/70R20 front and 380/70R28 rear), the M504 focuses on operator well-being:

• Heating and air conditioning included as standard.

• Spacious interior with an adjustable seat.

• Clear dashboard and ergonomic control layout.
